The problem:

So, why couldn't I just throw another smart plug at my toy trains?

Well, I guess I could, but I don't really think that's the greatest idea. Reason being that turning the trains on and off in a binary fashion (all or nothing) might not be great on them, and wouldn't be the most pleasant sound either. I guess I could look at some of the solutions that Lionel markets like their Legacy or TMCC options, but that would mean a lot of new purchases, research, and maybe some other annoyances that I'm just not too excited to deal with. So, needless to say, that option's off the list too. Perhaps one of Lionel's new bluetooth options? I guess, but that's kind of boring, don't you think? And to boot, if I were to follow that route, I'd certainly need to buy a new locomotive, and I'd likely need to hack the remote. Another option that I'm just not thrilled about.

Hmm... well, what's left? My pickyness hasn't left me with many options, but I think there's still got to be something.

Think. Think. Think.

I spent some time thinking about my alternatives today, and well, let me just walk you through that.

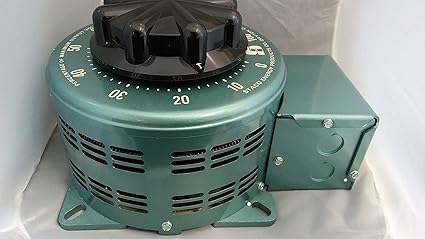

I started out thinking about the toy train transformer itself. That's all it really is, a transformer; well, variac specifically. A variac is just a variable transformer, essentially a graphine brush that moves across the windings on the secondary side of a transformer. This varying motion provides the variable "tap" on the transformer, and allows it to acheive a voltage that can be varied and controlled to change the speed of the connected trains.

It's pretty simple really, Lionel and others pioneered this practice for the model and toy scene nearly a century ago. Trouble is, the transformers (in my case, a Lionel ZW transformer) aren't exactly built for modification, and like I mentioned earlier, I don't exactly idolize the thought of tearing apart my toy train controls just to make them "smarter."

I spent some time looking around for a cheap (I'd like to stay under $100 since I need to buy gifts, too!) variac that is digitally controlled. No dice.

I guess I could buy a big variac and hook up a motor and...

No.

Not gonna fly.

Hmm... well, what else?

Another option is a rheostat. For those of us who either forgot or skipped electrical machines in college; a rheostat is basically a variable resistor. Similar to a variac, rheostats are typically made from some form of wound wire that has a varying resistance as the user employs a sweeper to move from one end to the other. That's really the big difference, and the reason it's not just called a variable resistor, or even a potentiometer. Rheostats are basically "variable resistors on steroids," built for high-energy systems.

So... yours truly started poking around online looking (once again) for a cheap electrical device beefy enough to run toy trains, but not so big that it would break the bank. I bummed around through Amazon with no luck, but after a quick search on eBay, I found something pretty enticing...

Guess which toy train company just happened to make rheostats way back in the day?

That's right! Lionel rheostats!

A solution?

So, is that it? Just like that? Problem solved?

Well, yes; but also, no.

Lionel rheostats seem to be running about $10 and about as much in shipping on eBay at the time of writing, so that's really good news. Not to mention the fact that they were built specifically for toy trains (score!).

But what about the fact that it's mechanical, not digital?

I knew you'd ask that...

Well, here, the big difference is the form factor. These rheostats are significantly easier to interface with. Since they're linear, a single piece of all-thread-rod and a little stepper motor could quite easily do just what I need. I could connect a little stepper motor to an ESP32/ESP8266 and hook that up to a Lionel rheostat via all-thread and a moving nut with a sweeper attached.

Easy-peasy! Well, sort-of.

What's next?

Well, there's still quite a bit left on this one, and a good chance I won't actually do anything about it this Christmas. Still, it's an exciting idea, and I'm definitely going to pursue it!

That's all for now, but stay tuned!

Who knows, maybe I'll even throw a whistle control on there!!!
